Heavy Duty Fiber Laser Cutting Machine |
 Location：Home >> Products >> Laser Machine |
|
|
Heavy Duty Fiber Laser Cutting Machine |
|
|
 |
|
 |
Machine Working Video: https://www.youtube.com/watch?v=ipoa9jg9pd8
Features:
High-rigidity heavy chassis is reducing the vibration generated during high speed cutting work greatly.
Gantry double-drive structure is installed imported rack & pinion transmission system, which improves the production efficiency.
High-performance cast aluminum guide rail, which passed finite element analysis. It can achieve high acceleration arc cutting work.
Open type workbench, easy to operate and small footprint.

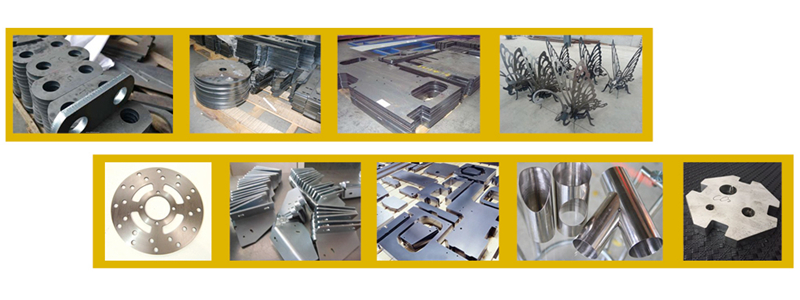

Application material:
It can cut variety of metal plates. Such as stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals.
Industry applications:
Kitchen fixtures, hardware cabinets, sheet metal processing, auto parts, refrigerators, air conditioners, elevators, hotel metal supplies, etc.
Technical Parameters:
| Model |
FLC-3015C/ FLC*4020C/
FLC-6020C |
Position accuracy |
+/-0.01mm/1000mm |
| Cutting scope |
3000*1500mm/ 4000*2000mm/6000*2000mm |
Reposition accuracy |
+/-0.03mm/1000mm |
| Laser type |
Fiber Laser Generator |
Graphic format supported |
CAD, DXF, etc. |
| Rated power rate |
1000-6000W |
Working environment |
Temp: 0-40 centi degree; Humidity: ≤80%; No condensation |
| Transmission system |
Gantry Double-drive System |
Total power |
380/220V 50/60Hz |
| Lubrication system |
Full Automatic |
Power rate |
About 20Kw |
| Maxiumum speed |
120m/min |
Overall Dimension |
4500/5500/7500*2450*1800mm |
| Maximum accelerated speed |
1.0G |
Gross Weight |
4500/5500/7000Kgs |
|
|
