Machine Name: Whole Cover Fiber Laser Marking Machine
Machine Model: FM-HC
Machine Features:
Whole Cover Fiber Laser Marking Machine is our company patent design with European standard protection OD+4.
Automatic focus control;
Machine can detect the thickness of the work piece automatically;
One-key to Intelligent marking;
Automatic door (the door will be automatic lifting down before work start and lifting up when finishing marking);
Laser source will be automatic cut off once the door be opened while machine working;
More convenient IO operations make it easier to harmonize the auxiliary equipment;
The opening language supporting system makes it easier to run the software in various languages platform.
Machine Application

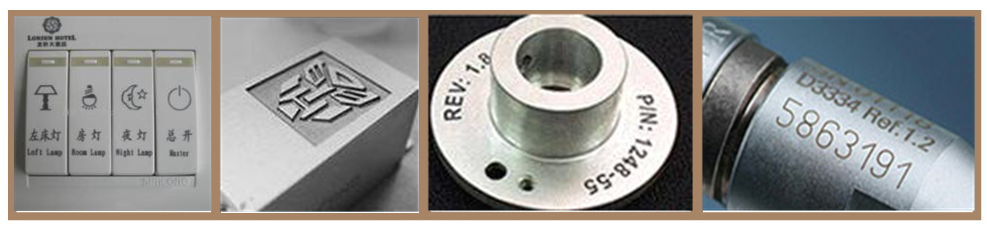

Suitable for electronic components, integrated circuits, electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks, jewelry, auto parts, luggage buckles, kitchen utensils, stainless steel products and other industry products, etc.For artistic, clear and permanent identification mark.
Suitable for engineering plastics, electroplating materials, coating materials, rubber, epoxy resin, ceramic, ABS, PVC, PES, copper, titanium, steel and other materials surface for artistic, clear and permanent identification mark.
Techncial Parameters
| Model |
FM-HC |
Power Rate |
20W/ 30W/ 50W |
| Laser Visibility |
Invisible |
Frequency |
20-30Khz/ 20-80Khz |
| Applicable Material |
Metal and parts of non metal materials |
Minimum Line Width |
0.02mm |
| Cooling System |
Air Cooling |
Minimum Character |
0.15*0.15mm |
| Technical Class |
Pulse Laser |
Engraving Line Speed |
<7000mm/s |
| Laser Wavelength |
1064nm |
Repeatability Accuracy |
±0.01mm |
| Class Classification |
Semiconductor Laser |
Marking Type |
Scanning Marking |
| Marking Scope |
100*100mm/ 200*200mm |
Laser Module Life |
> 100000 Hours |
|
