| Machine Name: 3D Dynamic Focusing Fiber Laser Marking Machine
Machine Model: FM-3D
Machine Feature:
The 3D dynamic focus laser marking machine is suitable for the demand of three-dimensional surface laser processing work.
This technology makes the 3D laser marking simple and brings more laser solution.
High-precision three-dimensional positioning technology, high-speed focusing and scanning system, laser beam fundamental mode, short pulse, high peak power, and high repetition rate provide customers with the ideal marking effect;
Three-dimensional graphics processing technology has friendly operation interface and is suitable for dxf, plt, cnc, step, iges and other formats;
High photoelectric conversion rate, long machine life and easy maintenance;
Marking speed is improving the processing efficiency greatly.
Application:

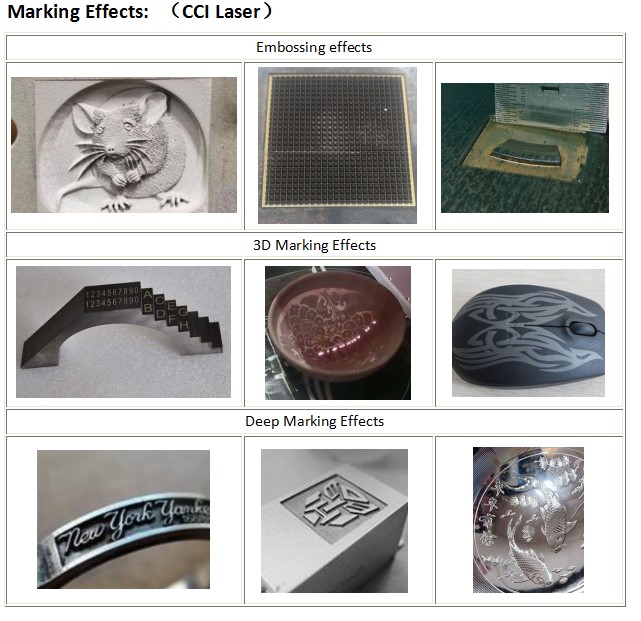

It can Mark graphics and text on the Metal surface, stainless steel, aluminum alloy, hard plastic, leather.
Case:
3D dynamic focus laser marking machine is suitable for laser marking of various metal or non-metal products with three-dimensional surface. It is widely used in mobile phone manufacturing, three-dimensional circuit, medical equipment, mold, 3C electronics, auto parts, electronic communication and other industries.
Technical Parameters
| 1 |
Repeated accuracy |
±0.003mm |
| 2 |
Working Area |
100*100/200*200/300*300/400*400mm |
| 3 |
Wavelength |
1064nm
|
| 4 |
Beam Quality |
m2 less than 1.5
|
| 5 |
Laser Repetition Rate |
Less than 100Khz |
| 6 |
Marking Depth |
Less than 1.2mm |
| 7 |
Min. Line Width |
0.01mm |
| 8 |
Min. Character Height |
0.1mm |
|
