DESCRIPTION
Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and other non-ferrous metals.
Mounted touch screen monitor and remote control for convenient interfacing.
Includes Free on site install and training
Limited Two (2) year Warranty covers laser machine parts.
SPECIFICATIONS
|
Position Accuracy
|
±0.01mm/1000mm
|
|
Re-position Accuracy
|
±0.03mm/1000mm
|
|
Cutting Area
|
3000*1500mm/4000*2000mm/ 6000*2000mm
|
|
Fiber Power
|
China made RAYCUS 500W-1000W
|
|
Graphic Format Support
|
CAD, DXF and so on
|
|
Motor type
|
AC Servo motors
|
|
Transmission System
|
Gantry Double Drive Structure
|
|
Material platform
|
Saw Tooth Blade cutting platform for metal cutting
|
|
Venting Attachments
|
Air exhaust fans with venting pipe
|
|
Machine Dimensions
|
4340*2300*1550mm
|
|
Net Weight
|
3500KG
|
WORKING CONDITION REQUIREMENT
|
Electric
|
Power Supply: 380V 50Hz/ 220V 60Hz
|
|
The stability of 3 phase voltage: +5%
|
|
Output voltage adjusting rate: less 2%
|
|
Assisted Air
|
Compressed air: Purification and dry；
|
|
O2: High purity;
|
|
N2: Purity no less than 99.9%;
|
|
Metal Sheet
|
homogeneous material；
|
|
Neat & clean surface.
|
|
Compressed Air
|
Screw compressor (more than 12Kg) with oil water separator and dryer.
|
|
Air storage tank Capacity: 1m3
|
|
Water
|
Purified water
|

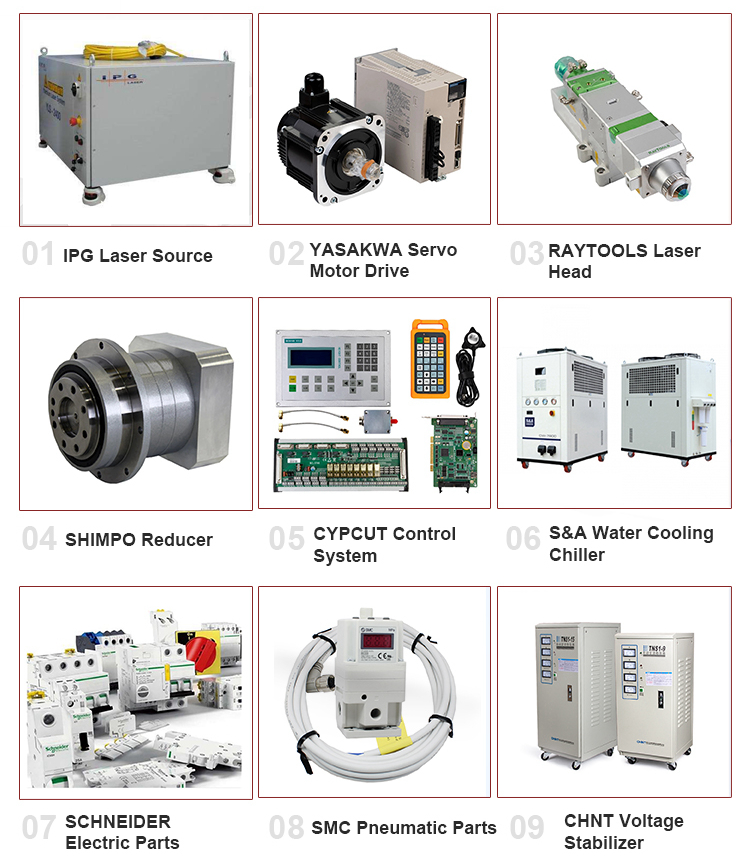

MAIN COMPONENTS

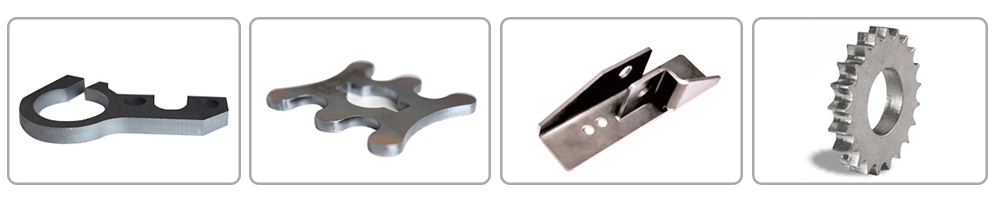

CUTTING EFFECTS
